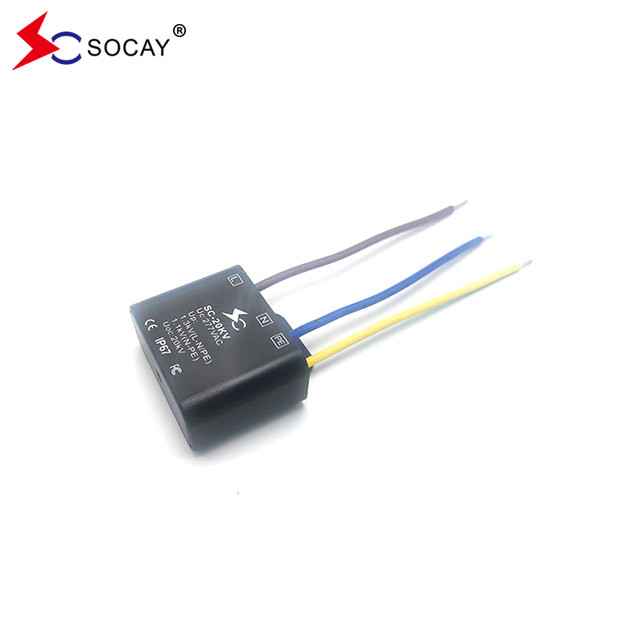

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

  • 1
  • 2

Brand Name : SOCAY

Model Number : SC-20KV-277

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 270PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Surge Protective Devices (SPD)

Size : 41×32×19.5mm

Rated Operating Voltage : 220VAC

Max. Continuous Voltage : 277VAC

Response Time : 25ns

Cross-section Area : 1.5mm2

Vn : 20kV

L-N/PE : 1.3kV

N-PE : 1.1kV

Contact Now

SC-20KV-277 Surge Protective Devices, Max. Continuous Voltage 277Vac, SPD Used in Street Lighting, Landscape Lighting

DATASHEET: SC-20KV-277_v2209.1.pdf

Symbol Parameter Value Unit
Electrical Parameters Rated Operating Voltage 220 VAC
Max. Continuous Voltage 277 VAC
Response Time 25 ns
Cross-section Area 1.5 mm2
Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 20 kV
Voltage Protection Level (Up) L-N/PE 1.3 kV
N-PE 1.1 kV


SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

Description:

SC-20KV-277 is a kind of power supply surge protector suitable for 220V power grid. Used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.

Features:

u The product has full mold protection function. The product has a maximum protection can withstand the impact of 20kV surge voltage.

u The size of the product is small, 41×32×19.5mm (excluding the connecting wire).

u It is a Class III power SPD.

u Parallel connection mode is adopted.

u Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.

u Executive standard: IEC/EN:61643-11.

u Operating Temperature Range: -40℃ to +85℃.

Applications:

  • Outdoor and Commercial LED Lighting.
  • Roadway lighting.
  • Traffic lighting.
  • Digital signage.
  • Security power supply.
  • Wash wall lighting.
  • Parking garage lighting.
  • Flood lighting.
  • Tunnel lighting.

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

Part Number Quantity
SC-20KV-277 270 PCS / Box
