SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

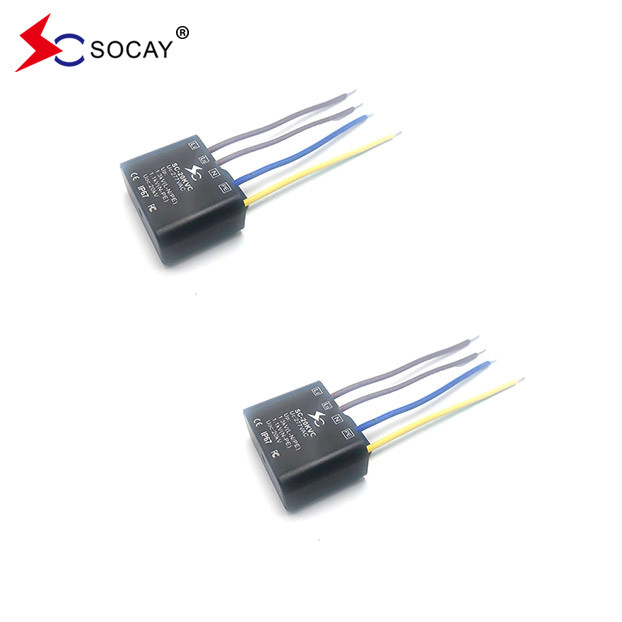

SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC

Brand Name : SOCAY

Model Number : SC-20KVC-277

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 270PCS

Price : Negotiable

Delivery Time : 5-8 work days

Surge Protector Name : Surge Protective Devices (SPD)

Surge Protector Size : 41×32×19.5mm

Rated Operating Voltage : 220VAC

Max. Continuous Voltage : 277VAC

Response Time : 25ns

Cross-section Area : 1.5mm2

Surge Protector L-N/PE : 1.3kV

Surge Protector N-PE : 1.1kV

Contact Now

Original Factory Supply Power Supply Surge Protector SC-20KVC-277 In Stock

Power Supply Surge Protector​ DATASHEET: SC-20KVC-277_v2302.1.pdf

Power Supply Surge Protector Introduction:

Original Factory Supply Power Supply Surge Protector SC-20KVC-277 is a kind of power supply surge protector suitable for 220V power grid. Power Supply Surge Protector SC-20KVC-277 can used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Power Supply Surge Protector SC-20KVC-277 Installation and application is very convenient, with L, N and PE connection line.

SC-20KVC-277 Features:

  • The product SC-20KVC-277 has full mold protection function. The product has a maximum protection can withstand the impact of 20kV surge voltage.
  • The size of the product SC-20KVC-277 is small, 41×32×19.5mm (excluding the connecting wire).
  • It is a Class III power SPD SC-20KVC-277.
  • Can use series, parallel connection mode, flexible and convenient.
  • Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.
  • Executive standard: IEC/EN:61643-11.
  • SC-20KVC-277 Operating Temperature Range: -40℃ to +85℃.


SC-20KVC-277 Applications:

  • Outdoor and Commercial LED Lighting.
  • Power Supply Surge Protector SC-20KVC-277 suitable for Roadway lighting.
  • Traffic lighting.
  • Power Supply Surge Protector SC-20KVC-277 suitable for Digital signage.
  • Security power supply.
  • Power Supply Surge Protector SC-20KVC-277 suitable for Wash wall lighting.
  • Parking garage lighting.
  • Power Supply Surge Protector SC-20KVC-277 suitable for Flood lighting.
  • Tunnel lighting.


Electrical Characteristics:

Symbol Parameter Value Unit
Electrical Parameters Rated Operating Voltage 220 VAC
Max. Continuous Voltage 277 VAC
Response Time 25 ns
Cross-section Area 1.5 mm2
Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 20 kV
Voltage Protection Level (Up) L-N/PE 1.3 kV
N-PE 1.1 kV

Application/ Inatallation Schematic:

SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC

SC-20KVC-277 Typical Dimension:

SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC

Packaging Information:

Part Number Quantity
SC-20KVC-277 270 PCS / Box

SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC
