SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

Name: SC20KV277 SPD Surge Protection Device 20kV LED Surge Protector
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SC-20KV-277

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 270PCS

Price : Negotiable

Delivery Time : 1-3 weeks

Packaging Details : PP bag

Protector Name : SPD Device

Protector Size : 41×32×19.5mm

Protector Rated Operating Voltage : 220VAC

Protector Max. Continuous Voltage : 277VAC

Protector Response Time : 25ns

Protector Vn : 20kV

Protector L-N/PE : 1.3kV

Protector N-PE : 1.1kV

Contact Now

Original Factory Supply SC-20KV-277 Surge Protection Device 20kV Led Surge Protector

Surge Protection Device DATASHEET: SC-20KV-277_v2209.1.pdf

Product features

To protection Led light when lightning thounder ,the circuit board safe .

Led Surge Protector Applications:

Led Road light

roadway lighting

Traffic Lighting

Ensure electricity supply

Intelligent Lighting Control System on Parking lots

tunnel lighting

Led Surge Protector Electrical Characteristics:

SPD Symbol	Led Surge Protector Parameter	Value	Unit
Led Surge Protector Electrical Parameters	Rated Operating Voltage	220	VAC
	Max. Continuous Voltage	277	VAC
	Led Surge Protector Response Time	25	ns
	Led Surge Protector Cross-section Area	1.5	mm2
Led Surge Protector Surge Parameters	Nominal Discharge Voltage (1.2/50μs) (Vn)	20	kV
Led Surge Protector Voltage Protection Level (Up)	Led Surge Protector L-N/PE	1.3	kV
	Led Surge Protector N-PE	1.1	kV

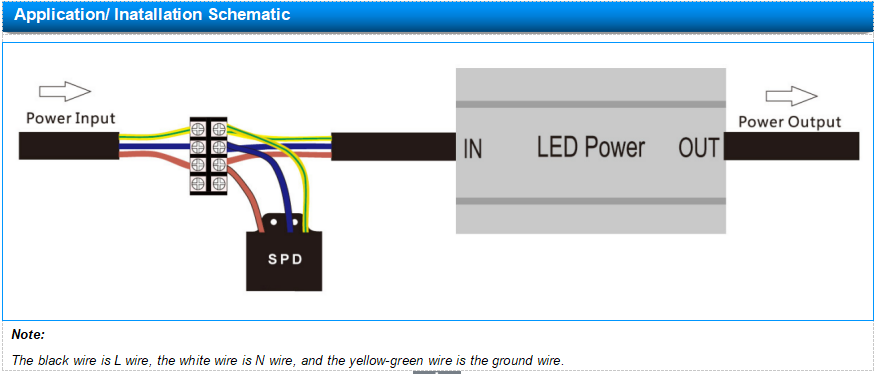

Led Surge Protector Application/ Inatallation Schematic:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

Note:

The black wire is L wire, the white wire is N wire, and the yellow-green wire is the ground wire.

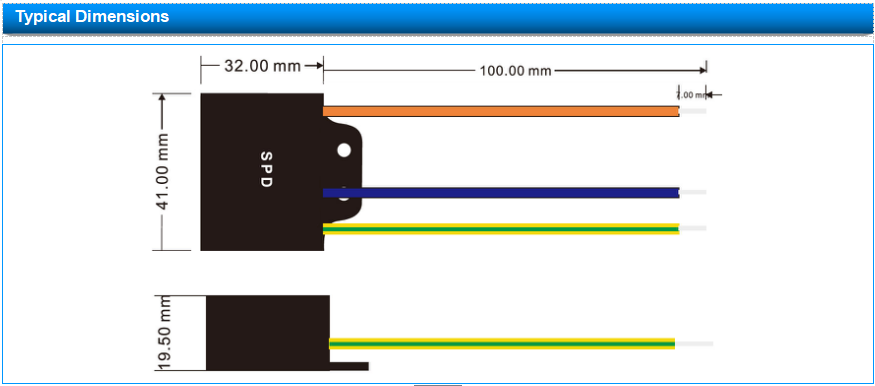

Led Surge Protector Typical Dimension:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

Led Surge Protector Packaging Information:

SPD Part Number	SPD Quantity
SC-20KV-277	270 PCS / Box

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector
