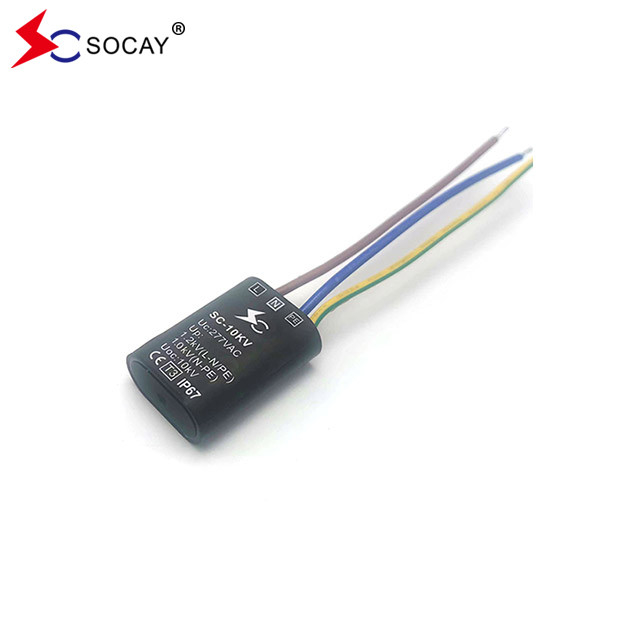

SOCAY SC-10KV-277 Surge Protection Device IP67 10kA 20kA 10kV 20kV Led Surge Protector
Surge Protection Device DATASHEET: SC-10KV-277_v2209.1.pdf
Brief Introduction:

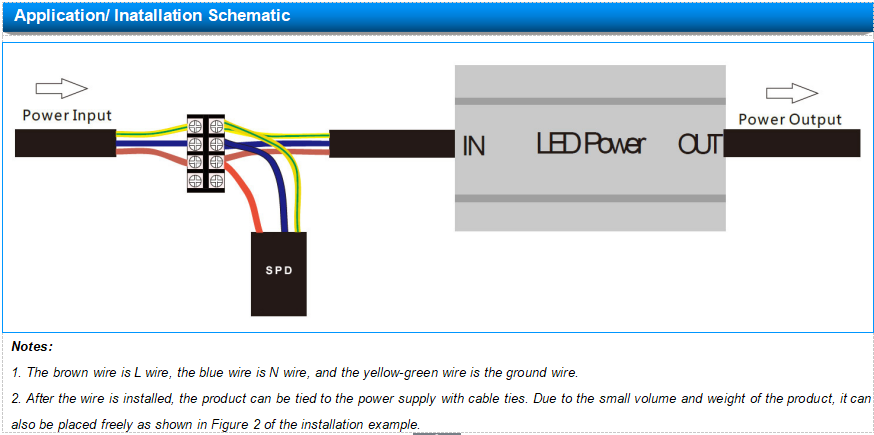

SC-10KV-277 Surge Protection Device is a kind of power supply surge protector suitable for 220V power grid. IP67 10kA 20kA 10kV 20kV Led Surge Protector. Used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . SC-10KV-277 Surge Protection Device's Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.
Surge Protection Device Features:
1. The product has full mold protection function. The product has a maximum protection can withstand the impact of 10kV surge voltage.

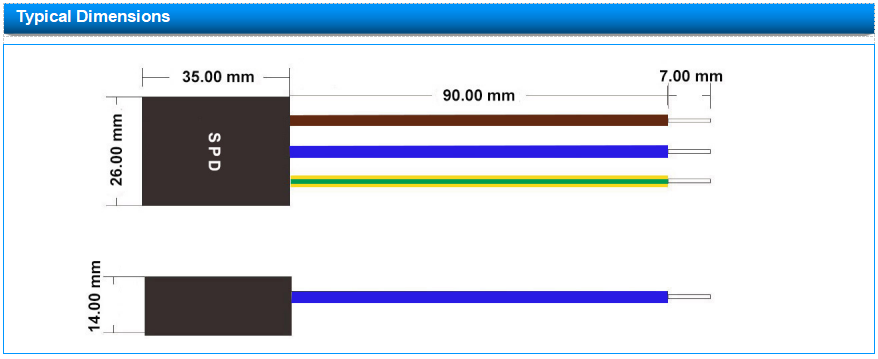

2. The size of the product is small, 35×26×14mm (excluding the connecting wire).
3. Surge Protection Device SC-10KV-277 is a Class III power SPD.
4. Can use series, parallel connection mode, flexible and convenient.
5. Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.
6. Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.
7. Operating Temperature Range: -40℃ to +85℃.
Surge Protection Device Applications:
Surge Protection Device SC-10KV-277 can used in Outdoor and Commercial LED Lighting.And apply for Roadway lightingTraffic lightingDigital signage.Besides, it is suitable for Security power supplyWash wall lightingParking garage lightingFlood lighting.At last, you can use Surge Protection Device in Tunnel lighting.
Surge Protection Device Electrical Characteristics:
| SPD Symbol | SPD Parameter | Value | Unit |
| SPD Electrical Parameters | SPD Rated Operating Voltage | 220 | VAC |
| | Max. Continuous Voltage | 277 | VAC |
| | SPD Response Time | 65 | ns |
| | SPD Cross-section Area | 1 | mm2 |
| SPD Surge Parameters | Nominal Discharge Voltage (1.2/50μs) (Vn) | 10 | kV |
| | Maximum Discharge Voltage (1.2/50μs) (Vmax) | 20 | kV |
| Voltage Protection Level (Up) | L-N/PE | 1.2 | kV |
| | N-PE | 1.0 | kV |
| Notes: 1. Nominal discharge voltage surge times:±15T; 2. Maximum discharge voltage surge times:1T. |
Surge Protection Device Packaging Information:
Product: Surge Protection Device
Part Number: SC-10KV-277
Quantity: 270 PCS / Box
