R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

  • 1
  • 2

Brand Name : SOCAY

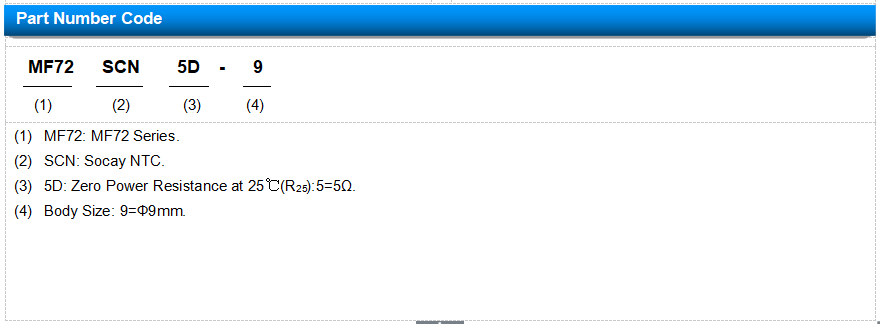

Model Number : MF72-SCN5D-9

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS / 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : NTC Thermistor

Length : Ф9mm

R25 : 5Ω

Imax : 3A

Resistance under Load : 210mΩ

δ : 11mW/℃

τ : 34 Secs.

C : 110μF

Storage Temperature Range : -10 to +40 ℃

Characteristics : NTCs device

Contact Now

Zero Power Resistance at 25℃(R25) 5Ω Power Thermistor for Limiting Inrush Current Ф9mm NTC

DATASHEET: MF72-SCN5D-9_v2105.1.pdf

Introduction:

NTCs are devices whose resistance decreases exponentially with increasing temperature, suppressing inrush currents at the moment the power supply is closed.

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN5D-9 5 3 210 11 34 110

R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

Features:

Circuit Board components protection .

Applications:

Switching power supplies, adapters, PD fast chargers,electronic motors, etc.

R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

R25 5Ω NTC Power Thermistor MF72-SCN5D-9 For Limiting Inrush Current Ф9mm

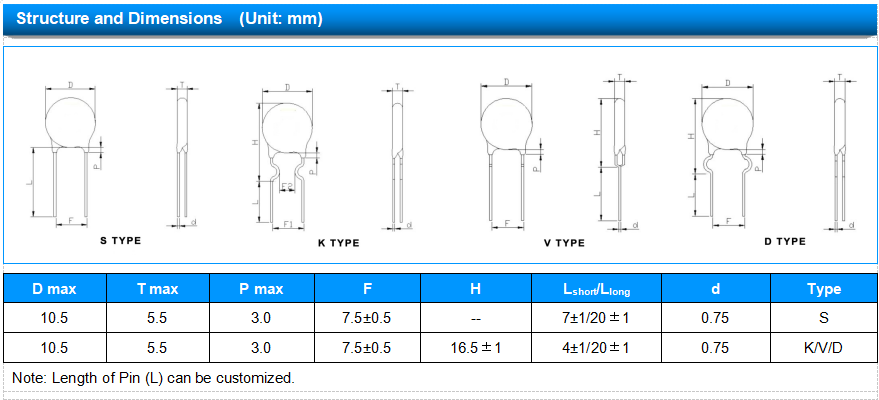

Part Number Type of L Quantity (pcs/bag)
MF72-SCN5D-9 Lshort 1000
Llong 500

Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V R≥500MΩ

Circuit Slection method

1: DC 1.2-1.5 times greater than working voltage

2: AC 1.5-2 times greater than working voltage
