SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
DATASHEET: MF72-SCN10D-5.pdf
Features:
RoHS & Halogen Free (HF) compliant
Body size: Ф5mm
Radial lead resin coated
High power rating
Wide resistance range
Cost effectiv
Operating temperature range: -40~+200℃
Certificate: UL /cUL/RoHS
Utilize:
Switch mode power supply
Power operated
Transformer
Adapter
Projector
Halogen lamp
LED driver circuit
Product storage conditions:
Storage Conditions:
Storage Temperature: -10℃ ~ +40℃.
Relative Humidity: ≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
Period of Storage: 1 year
Electrical characteristics:
| Part No. | Resistance at 25℃ ±20% | Max. Permissible Working Current | Resistance under Load (mΩ) | Dissipation Factor | Thermal Time Constant | Maximum permissible capacitance @240Vac |
| | R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(μF) |
| MF72-SCN2.5D-13 | 10 | 0.7 | 771 | 6 | 20 | 47 |

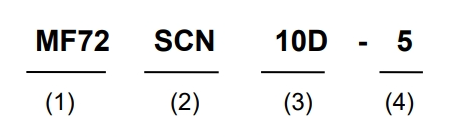

Part No. Code:
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.
(4) Body Size: 5=Ф5mm.

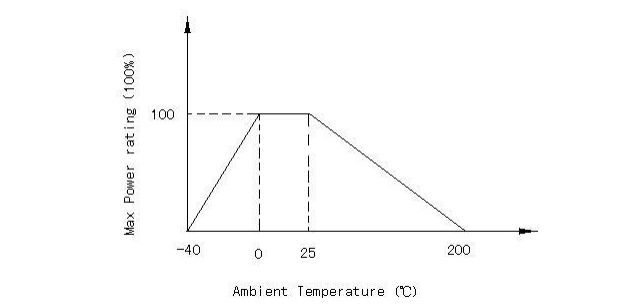

Maximum Power

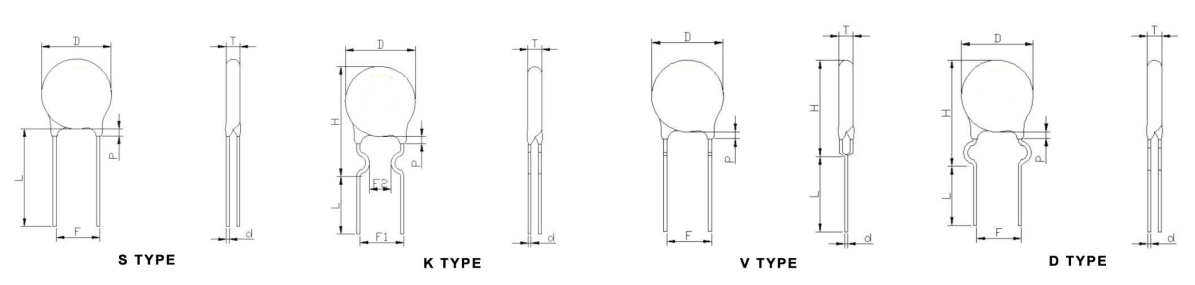

Dimensions and Structure (Unit: mm)
| D max | T max | P max | F | H | Lshort / Llong | d | Type |
| 6 | 4 | 3 | 5±0.5 | -- | 7±1/20±1 | 0.55 | S |
| 6 | 4 | 3 | 5±0.5 | 10±1 | 4±1/20±1 | 0.55 | K/V/D |
Packing:
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-5 | Lshort | 2000 |
| | Llong | 1000 |

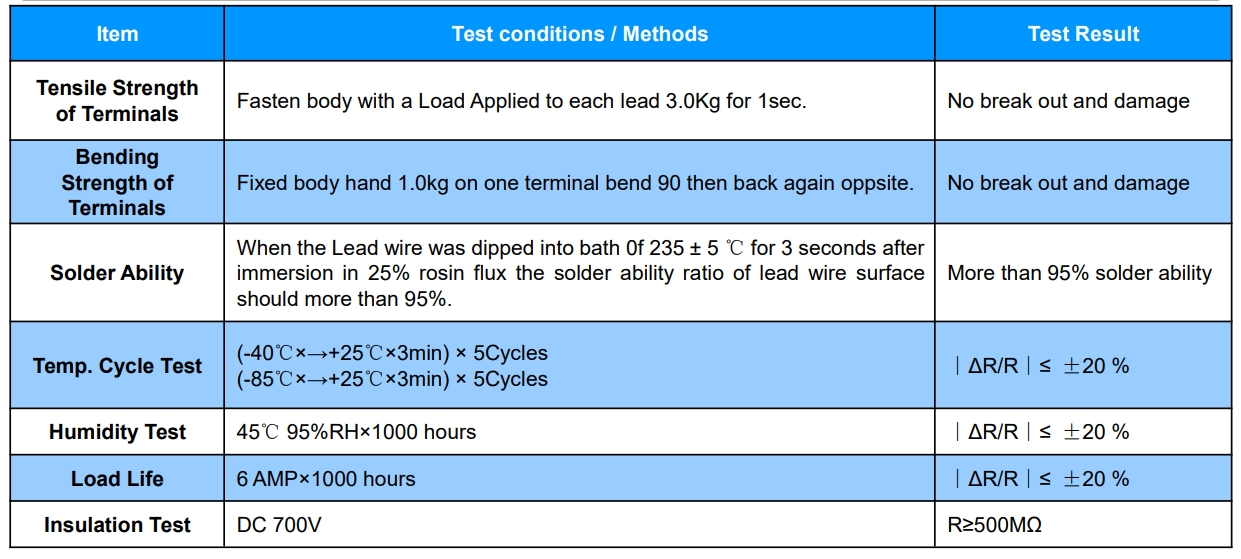

Dependability:
