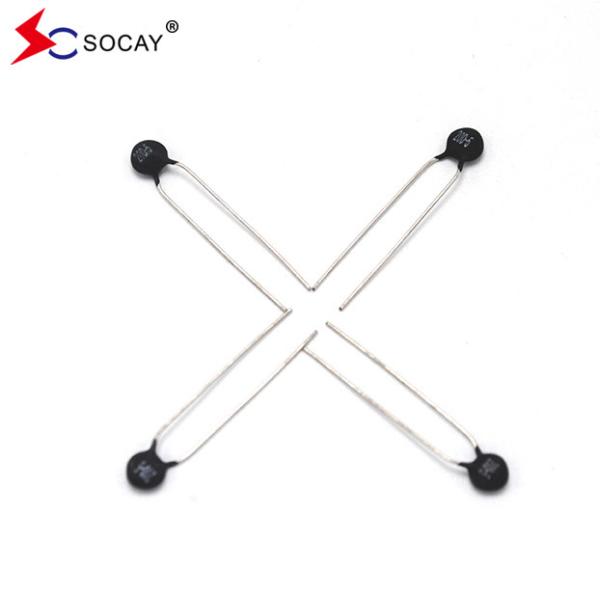

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load

  • 1
  • 2
  • 3

Brand Name : SOCAY

Model Number : MF72-SCN10D-5

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 2000PCS / 1000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Packaging Details : AMMO packing bulk

Item : NTC Thermistor

Dimension : Ф5mm

R25 : 10Ω

Imax : 0.7A

Resistance under Load : 771mΩ

δ : 6mW/℃

τ : 20 Secs.

C : 47μF

Storage Temperature Range : -10 to +40 ℃

Contact Now

10Ω Negative Temperature Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load

DATASHEET: MF72-SCN10D-5_v2105.1.pdf

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN10D-5 10 0.7 771 6 20 47


Features:

  • RoHS & Halogen Free (HF) compliant
  • Body size: φ5mm
  • Radial lead resin coated
  • High power rating
  • Wide resistance range
  • Cost effective
  • Operating temperature range: -40~+200℃
  • Agency recognition: UL /cUL/RoHS

Selection Method

Zero power resistance based on maximum operating ambient temperature.
The maximum steady-state current at the maximum ambient temperature is greater than the customer's maximum long-term operating current, with a margin.

Applications:

Switching power supplies, adapters, PD fast chargers,electronic motors, etc.

Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

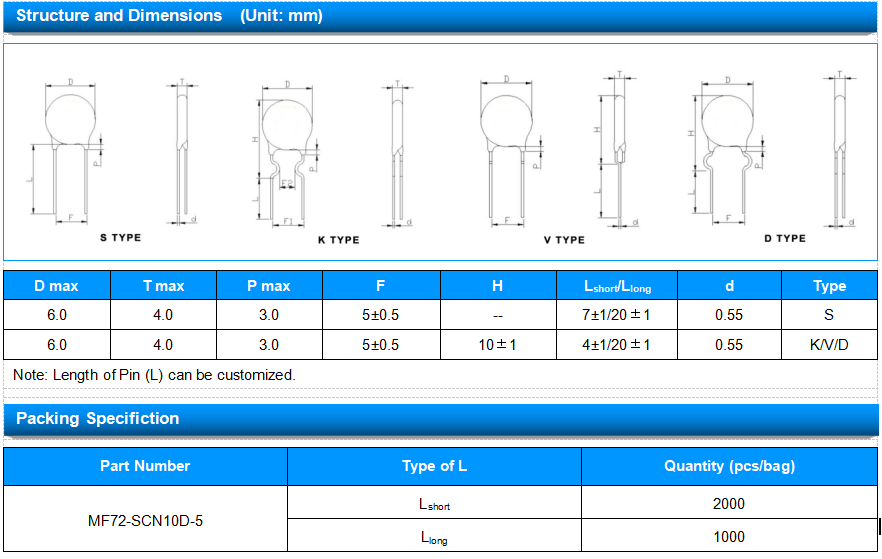

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load

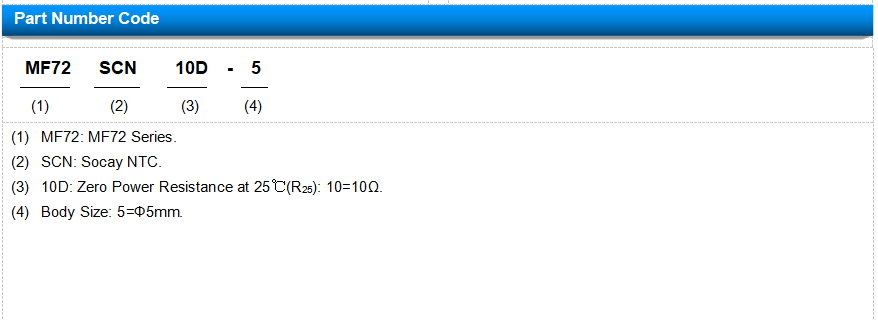

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load

Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V R≥500MΩ

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load
