Radial Lead Resin Coated NTC Thermistor MF72-SCN10D-11 3A Imax Wide Resistance Range

Name: Radial Lead Resin Coated NTC Thermistor MF72SCN10D11 3A Imax Wide Resistance Range
Brand: SOCAY
Price: 1 USD

Radial Lead Resin Coated NTC Thermistor MF72-SCN10D-11 3A Imax Wide Resistance Range Manufactures

Brand Name : SOCAY

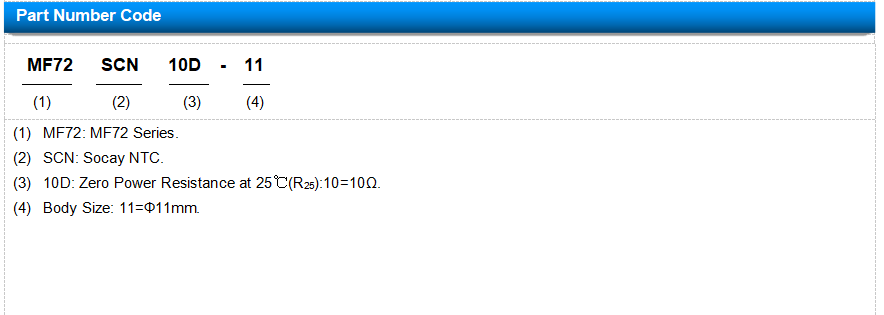

Model Number : MF72-SCN10D-11

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS / 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : NTC Thermistor

Package Type : Ф11mm

R25 : 10Ω

Imax : 3A

Resistance under Load : 275mΩ

δ : 14mW/℃

τ : 47 Secs.

Storage Temperature Range : -10 to +40 ℃

Contact Now

SOCAY Radial Lead Resin Coated NTC Thermistor MF72-SCN10D-11 Operating Temperature Range -40~+200℃

DATASHEET: MF72-SCN10D-11_v2105.1.pdf

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R₂₅(Ω)

I_max(A)

(mΩ)

δ(mW/℃)

τ(Sec.)

C(μF)

MF72-SCN10D-11

275

220

Radial Lead Resin Coated NTC Thermistor MF72-SCN10D-11 3A Imax Wide Resistance Range

Classification

DIP:5Φ~25Φ

Current:0.3A~20A

PPTC:Positive temperature coefficient

NTC:Negative temperature coefficient,
collectively referred to as thermistors.

Applications:

u Switch mode power supply

u Electric motor

u Transformer

u Adapter

u Projector

u Halogen lamp

u LED driver circuit

Radial Lead Resin Coated NTC Thermistor MF72-SCN10D-11 3A Imax Wide Resistance Range

Part Number	Type of L	Quantity (pcs/bag)
MF72-SCN10D-11	L_short	1000
	L_long	500

Item	Test conditions / Methods	Test Result
Tensile Strength of Terminals	Fasten body with a Load Applied to each lead 3.0Kg for 1sec.	No break out and damage
Bending Strength of Terminals	Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite.	No break out and damage
Solder Ability	When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%.	More than 95% solder ability
Temp. Cycle Test	(-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles	∣ΔR/R∣≤ ±20 %
Humidity Test	45℃ 95%RH×1000 hours	∣ΔR/R∣≤ ±20 %
Load Life	6 AMP×1000 hours	∣ΔR/R∣≤ ±20 %
Insulation Test	DC 700V	R≥500MΩ

We are manufacturer and supplier with over 20 years experience for passive components as below

1- ESD

2- TVS Diodes

3- PPTC Resettable Fuse

4- Gas Discharge Tube

5- NTC Themistor

6- Varistor,etc.
