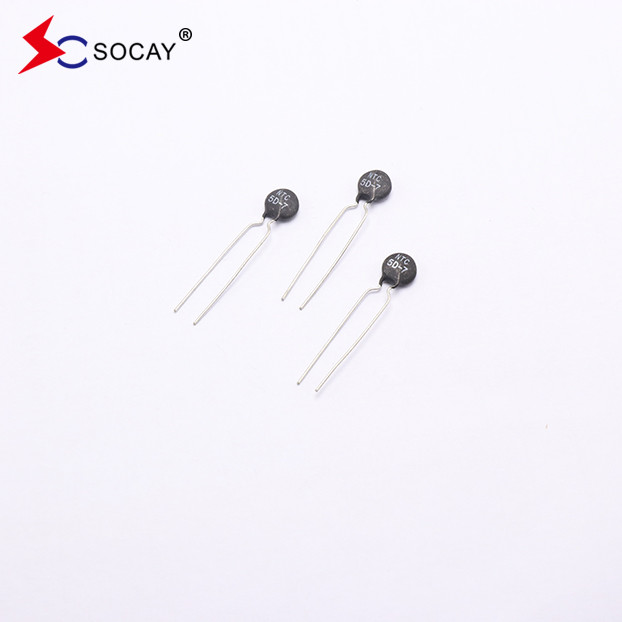

10Ω 78μF Power NTC Thermistor MF72-SCN10D-7 RoHS Halogen Free Compliant
DATASHEET: MF72-SCN10D-7_v2105.1.pdf

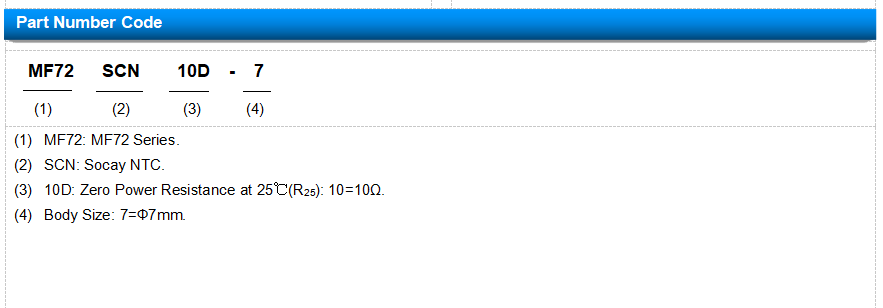

| Part Number | Resistance at 25℃ ±20% | Max. Permissible Working Current | Resistance under Load (mΩ) | Dissipation Factor | Thermal Time Constant | Maximum permissible capacitance @240Vac |
| | R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(μF) |
| MF72-SCN10D-7 | 10 | 1 | 616 | 9 | 27 | 78 |
About NTC
NTC thermistor is a very simple temperature sensor, which refers to negative temperature coefficient thermistor and is very common in consumer electronics. NTC thermistor is a typical temperature-sensitive semiconductor resistor. Its resistance decreases as the temperature increases.
NTC thermistor principle
NTC thermistors generally use metal oxides such as manganese, manganese, cobalt, nickel and copper as the main materials. These metal oxide materials have semiconductor properties. Because the conductive mode is completely similar to semiconductor materials such as germanium and silicon, when the temperature is low, the number of carriers (electrons and holes) of these oxide materials is small, so the resistance of the thermistor is higher; as the temperature increases As the value increases, the number of carriers increases, so the resistance of the thermistor decreases.
NTC thermistor function
1. Suppression of surge current; 2. Temperature measurement; 3. Temperature compensation; 4. Liquid level measurement; 5. Overheating protection.
These are all well-known to everyone. In addition, NTC thermistors are cost-effective, have various packaging forms to adapt to various scenarios, and are very simple to use. They are widely used in household appliances, power industry, communications, military science, aerospace, etc. each field.
Features:
- RoHS & Halogen Free (HF) compliant

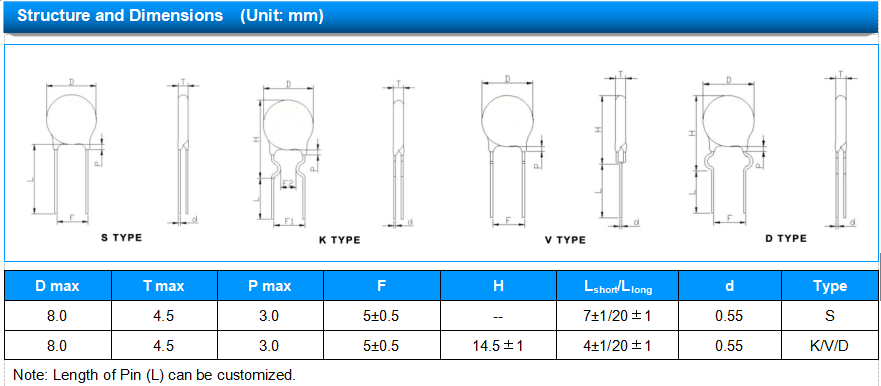

- Body size: φ7mm
- Radial lead resin coated
- High power rating
- Wide resistance range
- Cost effective
- Operating temperature range: -40~+200℃
- Agency recognition: UL /cUL/RoHS
|
Applications:
| u Switch mode power supply u Electric motor u Transformer u Adapter u Projector u Halogen lamp u LED driver circuit |
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-7 | Lshort | 1000 |
| | Llong | 500 |
| Item | Test conditions / Methods | Test Result |
| Tensile Strength of Terminals | Fasten body with a Load Applied to each lead 3.0Kg for 1sec. | No break out and damage |
| Bending Strength of Terminals | Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. | No break out and damage |
| Solder Ability | When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. | More than 95% solder ability |
| Temp. Cycle Test | (-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles | ∣ΔR/R∣≤ ±20 % |
| Humidity Test | 45℃ 95%RH×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Load Life | 6 AMP×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Insulation Test | DC 700V | R≥500MΩ
|
1.FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
