MF72-SCN2.5D-11 NTC Thermistor 95mΩ Resistance Under Load NTC 2.5D-11 For Transformer

Name: MF72SCN25D11 NTC Thermistor 95mΩ Resistance Under Load NTC 25D11 For Transformer
Brand: SOCAY
Price: 1 USD

MF72-SCN2.5D-11 NTC Thermistor 95mΩ Resistance Under Load NTC 2.5D-11 For Transformer Manufactures

Brand Name : SOCAY

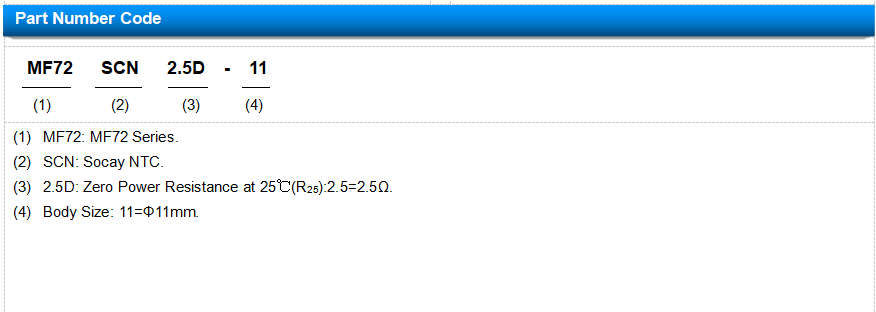

Model Number : MF72-SCN2.5D-11

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS / 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : NTC Thermistor

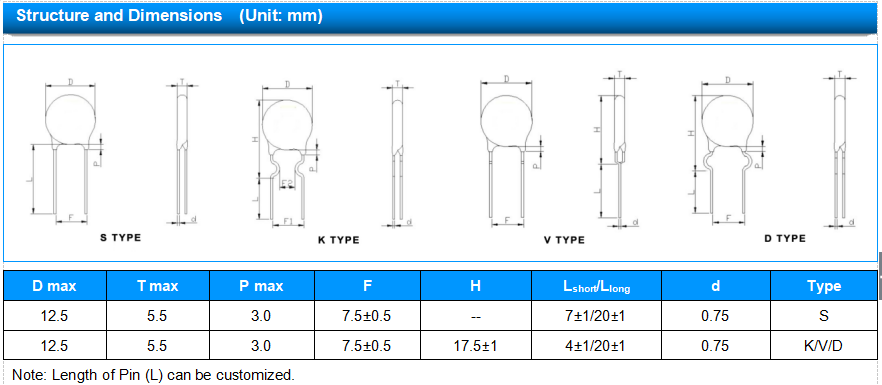

Package Type : Ф11mm

R25 : 2.5Ω

Imax : 5A

Resistance under Load : 95mΩ

δ : 13mW/℃

τ : 43 Secs.

Storage Temperature Range : -10 to +40 ℃

Contact Now

Original Factory Supply MF72-SCN2.5D-11 Resistance at 25℃ 2.5Ω±20% NTC Thermistor 95mΩ Resistance Under Load

DATASHEET: MF72-SCN2.5D-11_v2105.1.pdf

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

R₂₅(Ω)

I_max(A)

(mΩ)

δ(mW/℃)

τ(Sec.)

MF72-SCN2.5D-11

2.5

MF72-SCN2.5D-11 NTC Thermistor 95mΩ Resistance Under Load NTC 2.5D-11 For Transformer

Features:

RoHS & Halogen Free (HF) compliant
Body size: φ13mm
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range: -40~+200℃
Agency recognition: UL /cUL/RoHS

Applications:

u Switch mode power supply

u Electric motor

u Transformer

u Adapter

u Projector

u Halogen lamp

u LED driver circuit

Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

MF72-SCN2.5D-11 NTC Thermistor 95mΩ Resistance Under Load NTC 2.5D-11 For Transformer

Part Number	Type of L	Quantity (pcs/bag)
MF72-SCN2.5D-11	L_short	1000
	L_long	500

Item	Test conditions / Methods	Test Result
Tensile Strength of Terminals	Fasten body with a Load Applied to each lead 3.0Kg for 1sec.	No break out and damage
Bending Strength of Terminals	Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite.	No break out and damage
Solder Ability	When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%.	More than 95% solder ability
Temp. Cycle Test	(-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles	∣ΔR/R∣≤ ±20 %
Humidity Test	45℃ 95%RH×1000 hours	∣ΔR/R∣≤ ±20 %
Load Life	6 AMP×1000 hours	∣ΔR/R∣≤ ±20 %
Insulation Test	DC 700V	R≥500MΩ

Product Tags:

NTC Thermistor 95mΩ

Transformer NTC Thermistor

NTC 2.5D-11

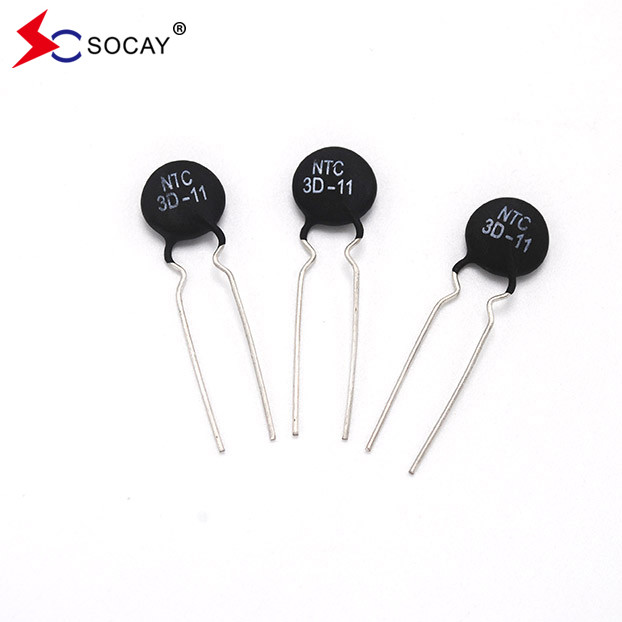

MF72-SCN2.5D-11 NTC Thermistor 95mΩ Resistance Under Load NTC 2.5D-11 For Transformer Images
