Socay NTC MF72 Series MF72-SCN10D-9 Power Thermistor Suitable for Transformer/Adapter/Projector
DATASHEET: MF72-SCN10D-9_v2105.1.pdf

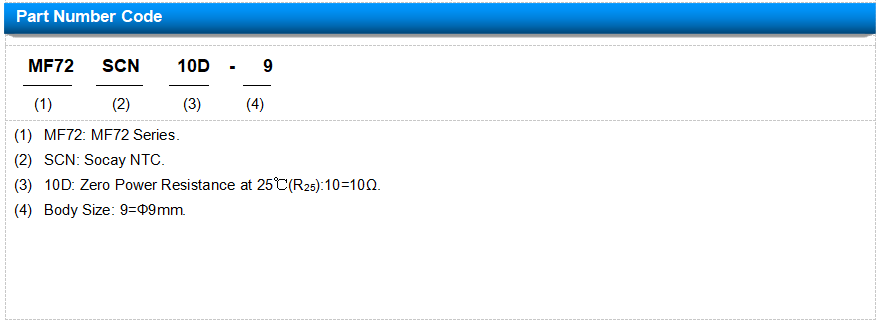

| Part Number | Resistance at 25℃ ±20% | Max. Permissible Working Current | Resistance under Load (mΩ) | Dissipation Factor | Thermal Time Constant | Maximum permissible capacitance @240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) |
| MF72-SCN10D-9 | 10 | 2 | 458 | 11 | 32 | 110 |
Main Material
Connected in series on the circuit, at room temperature, NTC resistance value is large, in the moment the circuit is connected, can play a current limiting role; when the circuit works normally, NTC due to the temperature rise caused by passing current, at this time the resistance value drops, will not affect the normal operation of the circuit.
Features:
- RoHS & Halogen Free (HF) compliant
- Body size: φ9mm
- Radial lead resin coated
- High power rating
- Wide resistance range
- Cost effective
- Operating temperature range: -40~+200℃
- Agency recognition: UL /cUL/RoHS
|
Storage Conditions of Products:
| u Storage Conditions: Storage Temperature: -10℃ ~ +40℃. Relative Humidity: ≤ 75%RH. Keep away from corrosive atmosphere and sunlight. u Period of Storage: 1 year. |
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-9 | Lshort | 1000 |
| | Llong | 500 |
| Item | Test conditions / Methods | Test Result |
| Tensile Strength of Terminals | Fasten body with a Load Applied to each lead 3.0Kg for 1sec. | No break out and damage |
| Bending Strength of Terminals | Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. | No break out and damage |
| Solder Ability | When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. | More than 95% solder ability |
| Temp. Cycle Test | (-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles | ∣ΔR/R∣≤ ±20 % |
| Humidity Test | 45℃ 95%RH×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Load Life | 6 AMP×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Insulation Test | DC 700V | R≥500MΩ |
NTC Working Principle
Connected in series on the circuit, at room temperature, NTC resistance value is large, in the moment the circuit is connected, can play a current limiting role; when the circuit works normally, NTC due to the temperature rise caused by passing current, at this time the resistance value drops, will not affect the normal operation of the circuit.
