SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Name: SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72SCN8D15 8ohm 15mm
Brand: SOCAY
Price: 1 USD

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm Manufactures

Brand Name : SOCAY

Model Number : MF72-SCN8D-15

Certification : UL,REACH,ROHS,ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 2000PCS / 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,

Supply Ability : 250,000PCS Per Month

Delivery Time : 5-7 days

Packaging Details : Bulk

Resistance at 25℃ ±20% : 8Ω

Max. Permissible Working Current : 5A

Resistance under Load (mΩ) : 178mΩ

Dissipation Factor(mW/℃） : 20mW/℃

Thermal Time Constant（Sec.)_） : 80Sec.

Maximum permissible capacitance @240Vac(uF) : 470uF

Body Size : 15mm

Operating temperature range : -40~+200℃

Storage Temperature Range : -10 to +40 ℃

Contact Now

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 3ohm 15mm

DATASHEET: MF72-SCN8D-15_v2105.1.pdf

Model number	MF72-SCN3D-15
Color	Black and Others
Max State Current	6%
Rated Resistor	-55 to 125C
Quality Standard	RoHS Compliant
Service	One Stop BOM Service

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Part Namin Code:

(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 8D: Zero Power Resistance at 25℃(R25): 8=8Ω.

(4) Body Size: 15=Ф15mm.

Electrical Arguments:

Part Number	Resistance at 25℃ ±20%	Max. Permissible Working Current	Resistance under Load (mΩ)	Dissipation Factor	Thermal Time Constant	Maximum permissible capacitance @240Vac
Part Number	R25(Ω)	Imax(A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C(uF)
MF72-SCN8D-15	8	5	178	20	80	470

Maximum Power Rating(Pmax):

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

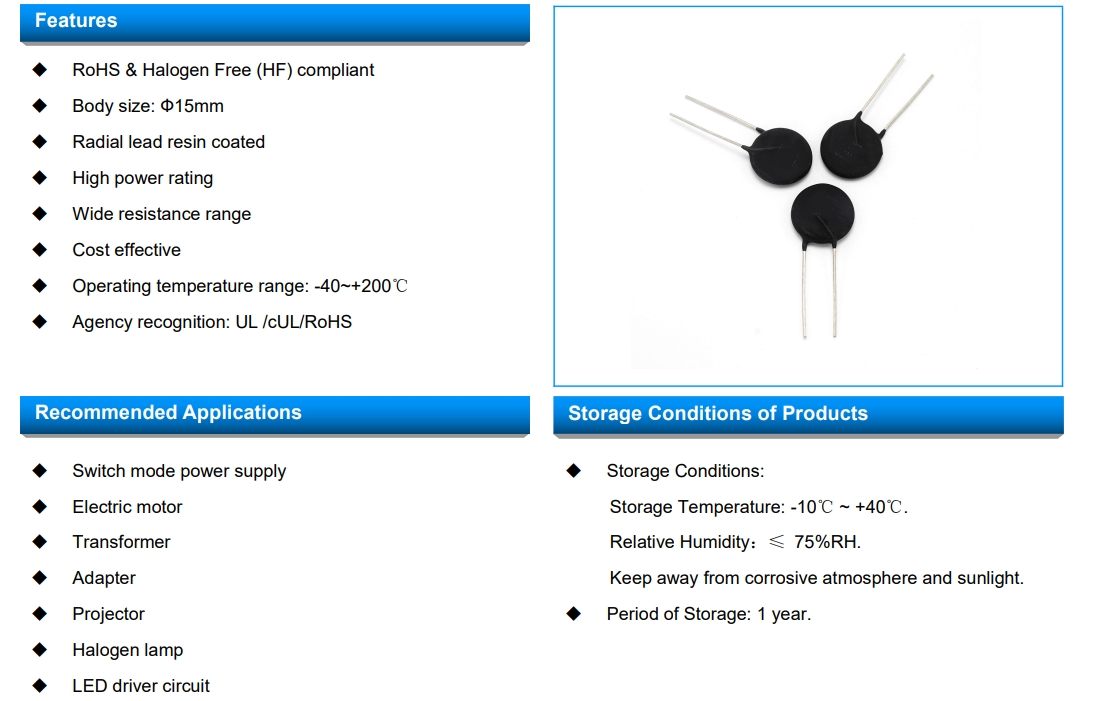

Product Appearance :

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Packaging Introduction:

Part Number	Quantity (pcs/bag)
MF72-SCN8D-15	250(Llong/Lshort)

More product choices:

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Dependability:

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Product Represent:

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Company Profile:

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Shipment Service :

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

FAQ

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Contact Imformation:

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm

Product Tags:

8ohm NTC Thermistor

15mm NTC Thermistor

MF72-SCN8D-15

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN8D-15 8ohm 15mm Images
