SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Name: SOCAY NTC Thermistor MF72SCN3D15 3ohm 15mm High Accuracy Temperature Sensor
Brand: SOCAY
Price: 1 USD

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor Manufactures

Brand Name : SOCAY

Model Number : MF72-SCN3D-15

Certification : UL,REACH,ROHS,ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 2000PCS / 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,

Supply Ability : 250,000PCS Per Month

Delivery Time : 5-7 days

Packaging Details : Bulk

Resistance at 25℃ ±20% : 3Ω

Max. Permissible Working Current : 7A

Resistance under Load (mΩ) : 75mΩ

Dissipation Factor(mW/℃） : 18mW/℃

Thermal Time Constant（Sec.)_） : 76Sec.

Maximum permissible capacitance @240Vac(uF) : 470uF

Body Size : 15mm

Operating temperature range : -40~+200℃

Storage Temperature Range : -10 to +40 ℃

Contact Now

SOCAY High Accuracy Temperature Sensor NTC Thermistor MF72-SCN3D-15 3ohm 15mm

DATASHEET: MF72-SCN3D-15_v2105.1.pdf

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Part Namin Code:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 3D: Zero Power Resistance at 25℃(R25): 3=3Ω.

(4) Body Size: 15=Ф15mm.

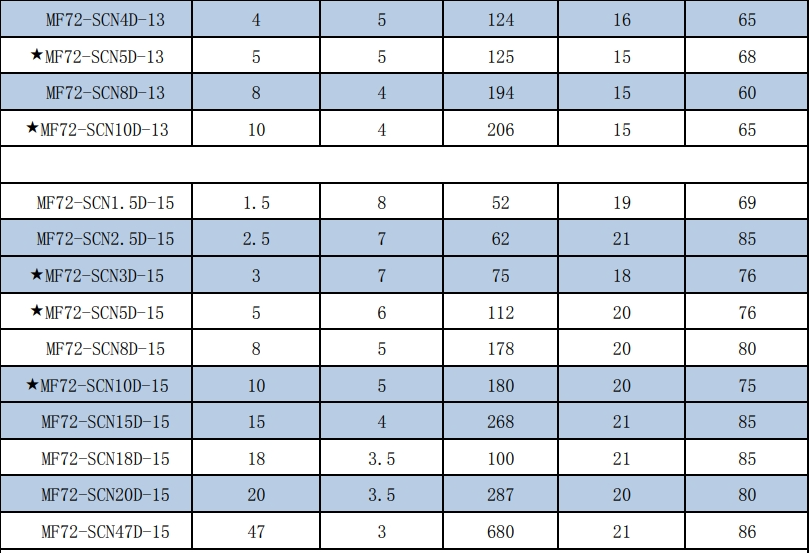

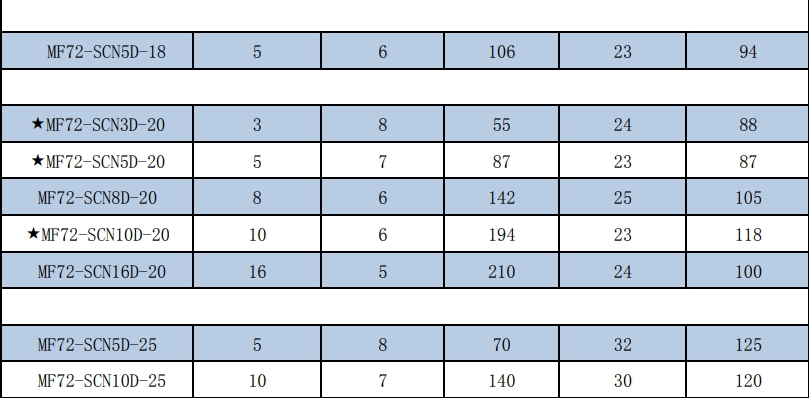

Electrical Arguments:

Part Number	Resistance at 25℃ ±20%	Max. Permissible Working Current	Resistance under Load (mΩ)	Dissipation Factor	Thermal Time Constant	Maximum permissible capacitance @240Vac
Part Number	R25(Ω)	Imax(A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C(uF)
MF72-SCN3D-15	3	7	75	18	78	470

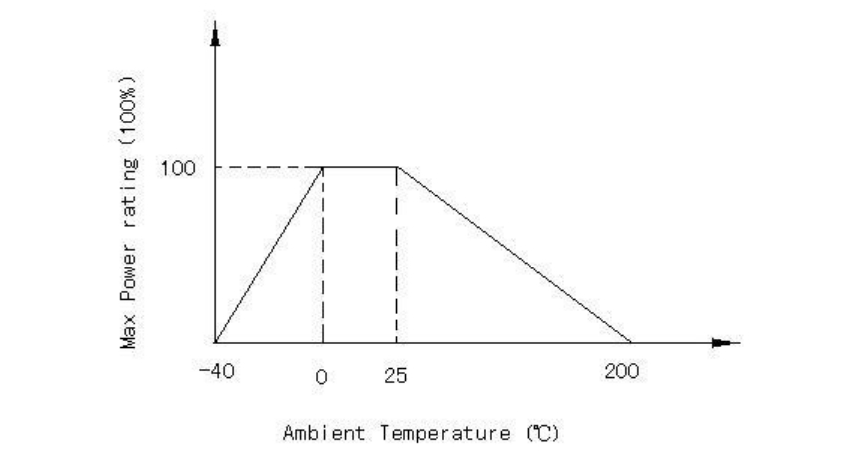

Maximum Power Rating(Pmax):

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

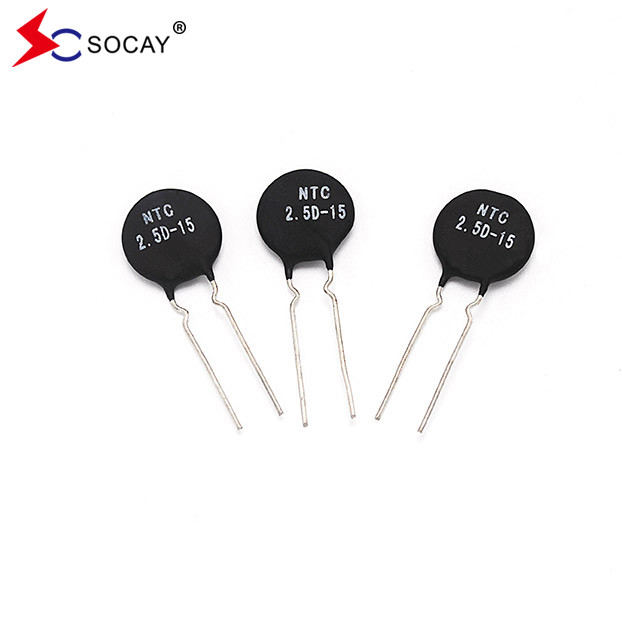

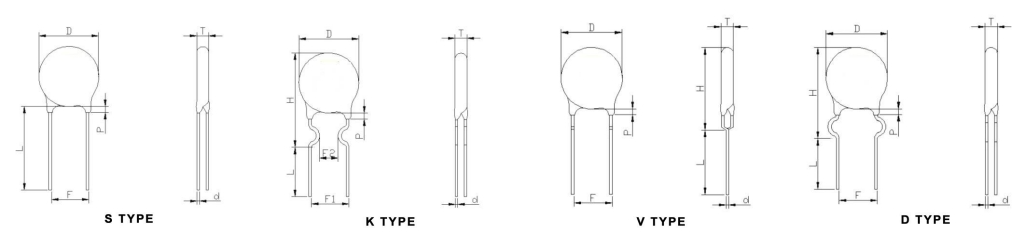

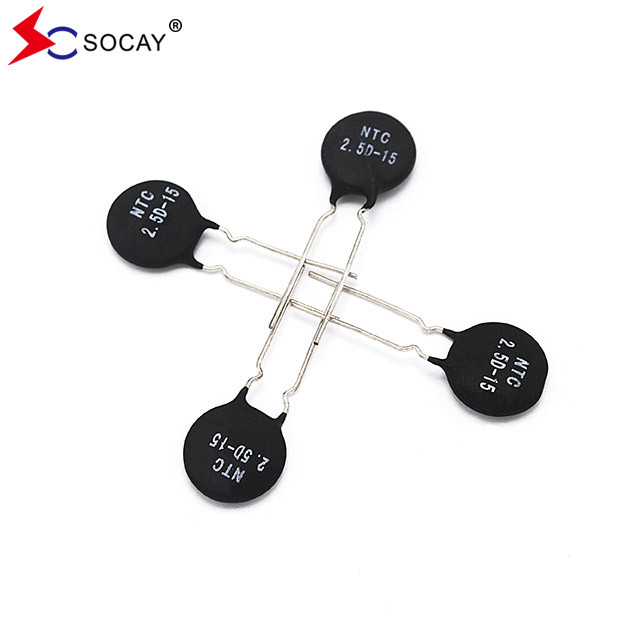

Product Appearance :

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

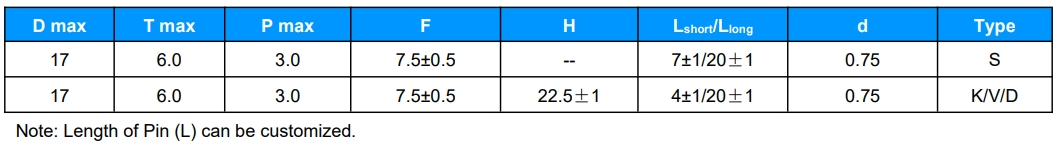

Packaging Introduction:

Part Number	Quantity (pcs/bag)
MF72-SCN3D-15	250(Llong/Lshort)

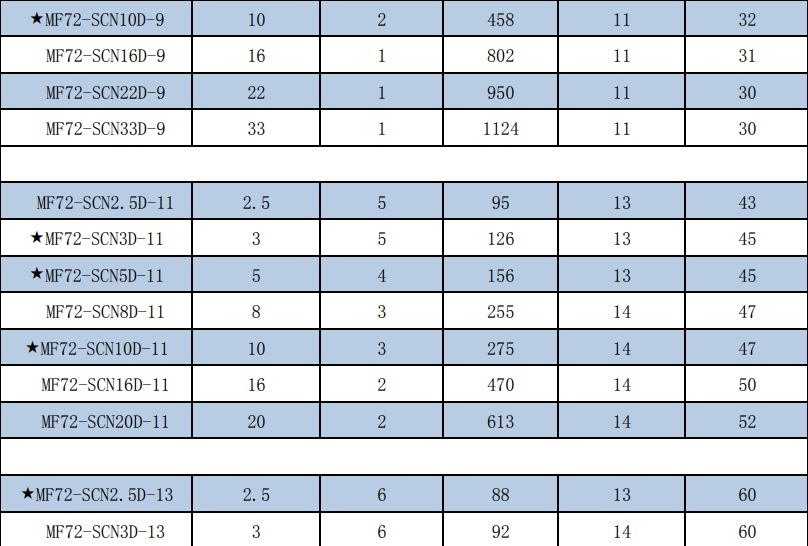

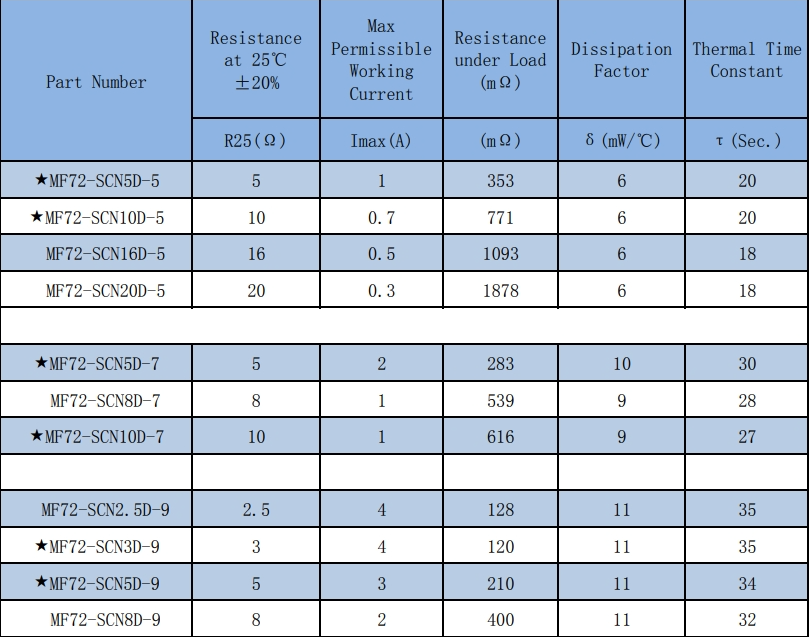

More product choices:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Dependability:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Product Represent:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

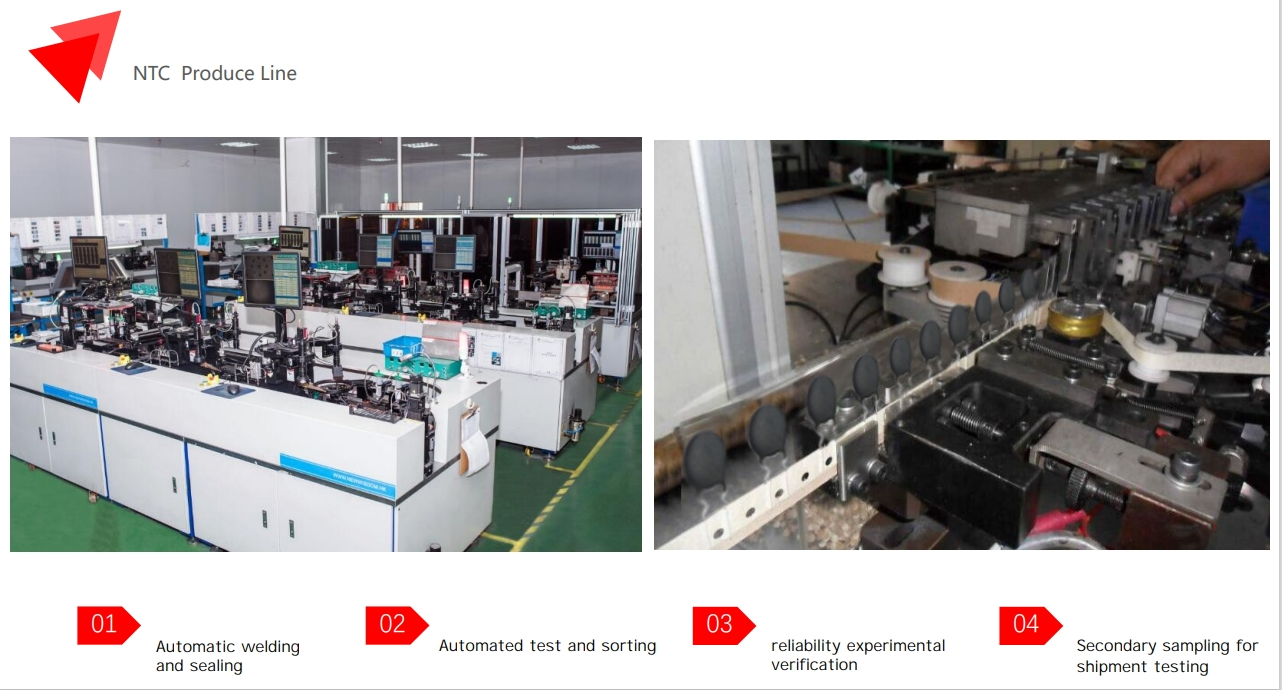

Company Profile:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Shipment Service :

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

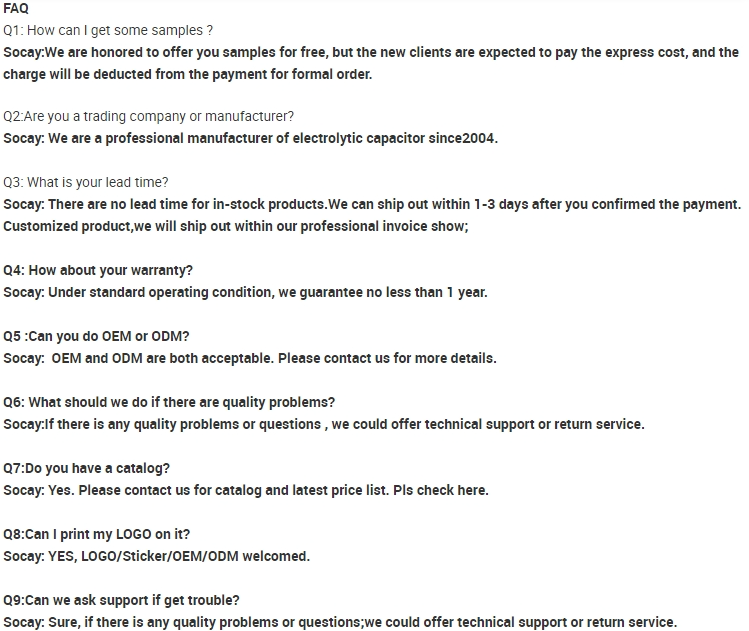

FAQ

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Contact Imformation:

SOCAY NTC Thermistor MF72-SCN3D-15 3ohm 15mm High Accuracy Temperature Sensor

Product Tags:

NTC Thermistor MF72-SCN3D-15

3ohm NTC Thermistor

MF72-SCN3D-15
