SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

Name: SOCAY Temperature Senso Power NTC Thermistor MF72SC16D9 16Ω 9mm Wide Resistance Range
Brand: SOCAY
Price: 0.01 USD

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range Manufactures

Brand Name : SOCAY

Model Number : MF72-SCN16D-9

Certification : UL,REACH,ROHS,ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 500

Price : USD0.01-0.25/piece

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Bulk

Product Name : NTC Thermistor

Package Type : Ф9mm

NTC R25 : 16Ω

Imax（A） : 1A

Resistance under Load : 802mΩ

δ（mW/℃） : 11mW/℃

τ（Secs.） : 31Secs.

Capacitance : 110μF

Contact Now

SOCAY Power NTC Thermistor MF72-SCN16D-9 16Ω 9mm Wide Resistance Range

DATASHEET:MF72-SCN16D-9_v2105.1.pdf

Features:

Operating temperature range: -40~+200℃.
Wide resistance range.
High power rating.
Radial lead resin coated.
Body size: Ф5mm.
Cost effective.

Applications:

LED driver circuit.
Projector.
Halogen lamp.
Adapter.
Transformer.
Switch mode power supply.
Electric motor.

Storage Conditions of Products:

Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.

Period of Storage: 1 year.

Part Number Code:

MF72 SCN 2.5D - 9

(1) (2) (3) (4)

(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 16D: Zero Power Resistance at 25℃(R25).

(4) Body Size: 9=Ф9mm.

Electrical Characteristics

Resistance at 25℃ ±20%	R25(Ω)	2.5(Ω)
Max. Permissible Working Current	Imax(A)	4A
Resistance under Load (mΩ)	(mΩ)	128mΩ
Dissipation Factor	δ(mW/℃)	11mW/℃
Thermal Time Constant	τ(Sec.)	35Sec.
permissible capacitance @240Vac	C(uF)	110uF

Maximum Power Rating(Pmax)

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

MF72-SCN2.5D-9 Packing Specifiction	Quantity (pcs/bag)
L short	1000
L long	500

Structure and Dimensions (Unit: mm)

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

D max	T max	P max	F	H	Lshort/Llong	d	Type
10.5	5.5	3.0	7.5±0.5	--	7±1/20±1	0.75	S
10.5	5.5	3.0	7.5±0.5	16.5±1	4±1/20±1	0.75	K/V/D

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

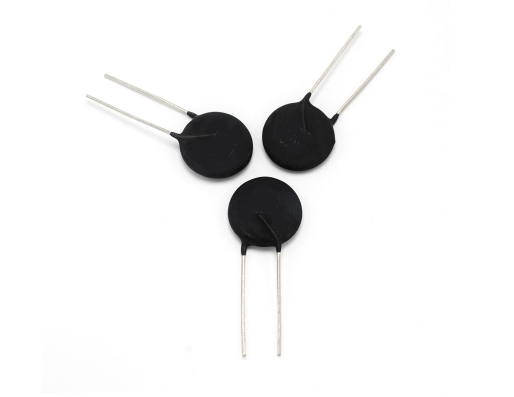

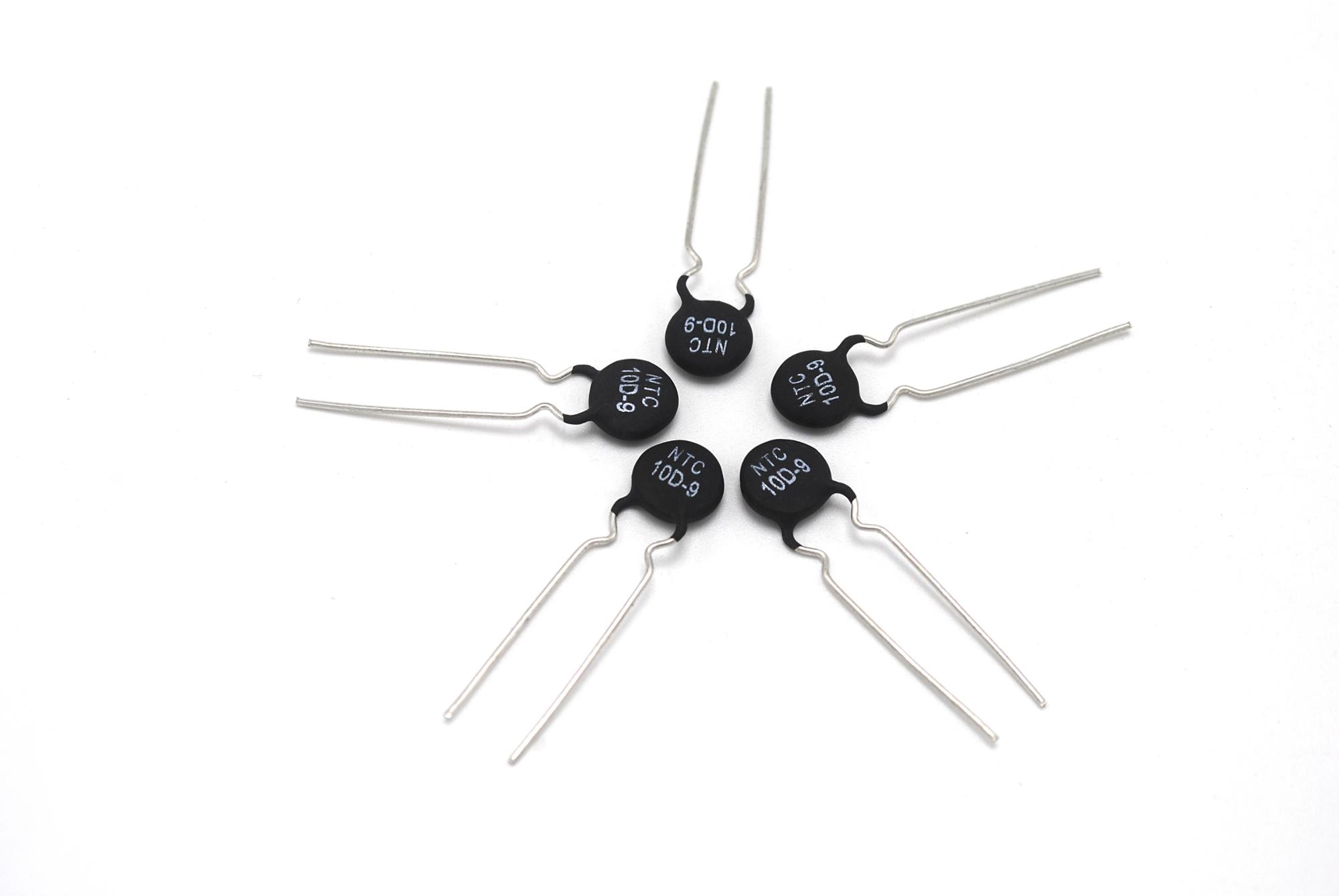

Product Pictures:

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

Company Profile:

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

Logistics services:

FAQ:

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range Images
