SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range
DATASHEET: MF72-SCN10D-9_v2105.1.pdf
| Features | RoHS & Halogen Free (HF) compl
Body size: Ф9mm
Radial lead resin coate
High power ratin
Wide resistance range
Cost effective
Operating temperature range: -40~+200℃
Agency recognition: UL /cUL/RoHS |
| |
| Recommended Applications | Switch mode power supply
Electric motor
Transformer
Adapter
Projector
Halogen lam
LED driver circui |
| |
| Storage Conditions of Products | Storage Conditions:
Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo
Period of Storage: 1 year
|
Electrical characteristics:
| Part Number | Resistance
at 25℃
±20% | Max. Permissible
Working
Current | Resistance
under Load
(mΩ) | Dissipation
Factor | Thermal
Time
Constant | Maximum
permissible
capacitance
@240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) |
| MF72-SCN10D-9 | 10 | 2 | 458 | 11 | 32 | 110 |
Part No. Code:
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.
(4) Body Size: 9=Ф9mm.
Maximum Power

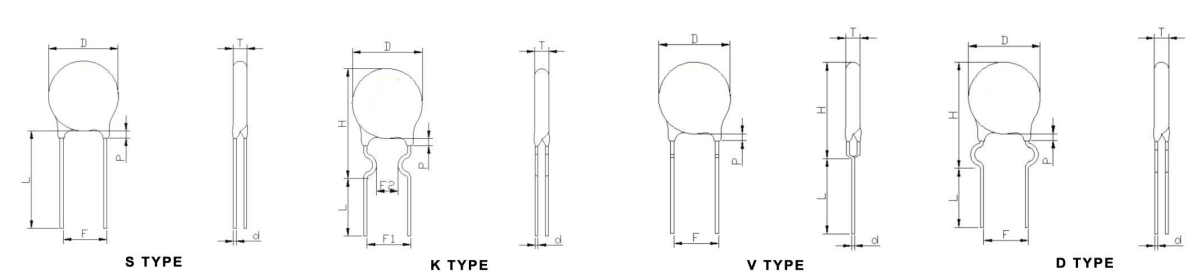

Dimensions and Structure (Unit: mm)
| D max | T max | P max | F | H | Lshort / Llong | d | Type |
| 10.5 | 5.5 | 3 | 7.5±0.5 | -- | 7±1/20±1 | 0.75 | S |
| 10.5 | 5.5 | 3 | 7.5±0.5 | 16.5±1 | 7±1/20±1 | 0.75 | K/V/D |
Packing:
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-11 | Lshort | 2000 |
| | Llong | 1000 |
Dependability:
| Item | Test conditions / Meth | Test Result |
Tensile Strength
of Termin | Fasten body with a Load Applied to each lead 3.0 | No break out and damage |
Bending
Strength of
Terminals | Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. | No break out and damage |
| Solder Ability | When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after
immersion in 25% rosin flux the solder ability ratio of lead wire surface
should more than 95% | More than 95% so |
| Temp. Cycle Test | (-40℃×→+25℃×3min) × 5Cycles
(-85℃×→+25℃×3min) × 5Cycles | ∣ΔR/R∣≤ ±20% |
| Humidity Test | 45℃ 95%RH×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Load Life | 6 AMP×1000 hou | ∣ΔR/R∣≤ ±20 % |
| Insulation Test | DC 700 | R≥500MΩ |
