SOCAY Power NTC Thermistor MF72-SCN10D-20 10Ω 20mm Imax Wide Resistance Range
DATASHEET: MF72-SCN10D-20_v2106.1.pdf
| Features | RoHS & Halogen Free (HF) compl
Body size: Ф20mm
Radial lead resin coate
High power ratin
Wide resistance range
Cost effective
Operating temperature range: -40~+200℃
Agency recognition: UL /cUL/RoHS |
| |
| Recommended Applications | Switch mode power supply
Electric motor
Transformer
Adapter
Projector
Halogen lam
LED driver circui |
| |
| Storage Conditions of Products | Storage Conditions:
Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo
Period of Storage: 1 year
|
| Electrical characteristics: |
| Part Number | Resistance
at 25℃
±20% | Max. Permissible
Working
Current | Resistance
under Load
(mΩ) | Dissipation
Factor | Thermal
Time
Constant | Maximum
permissible
capacitance
@240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) |
| MF72-SCN10D-9 | 10 | 16 | 194 | 23 | 118 | 560 |
Part No. Code:
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.
(4) Body Size: 20=Ф20mm.
Maximum Power Rating(Pmax)

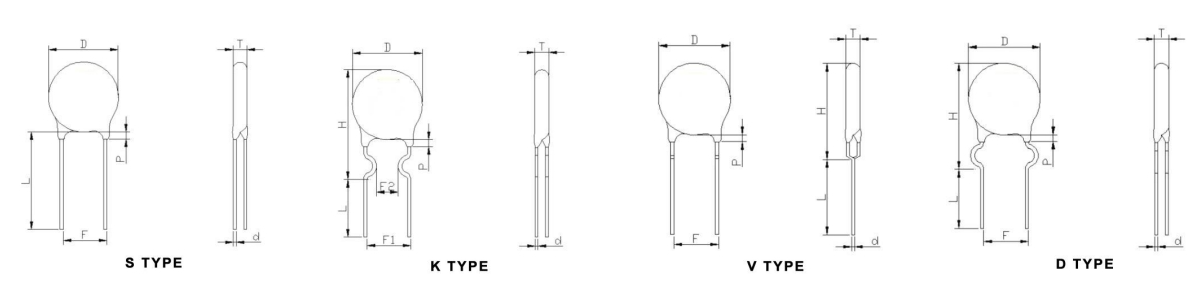

Dimensions and Structure (Unit: mm)
| D max | T max | P max | F | H | Lshort / Llong | d | Type |
| 22 | 7 | 3 | 10±0.5 | -- | 7±1/20±1 | 1 | S |
| 22 | 7 | 3 | 10±0.5 | 27.5±1 | 4±1/20±1 | 1 | K/V/D |
Packing:
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-20 | Lshort | 100 |
| | Llong | 100 |

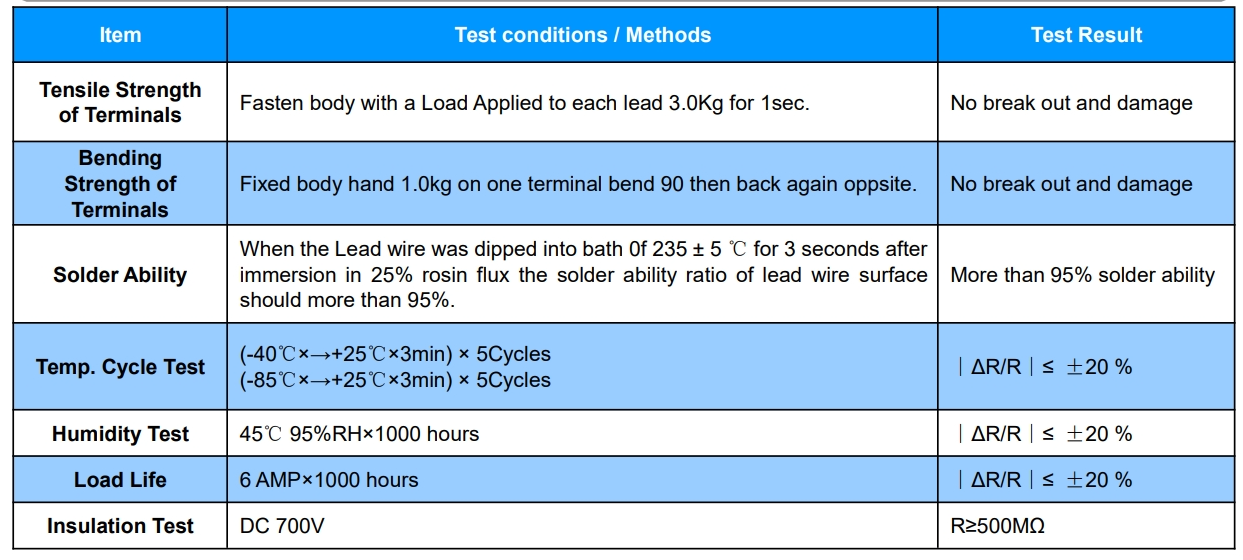

Dependability:
Product Display
